DWK-V press brake

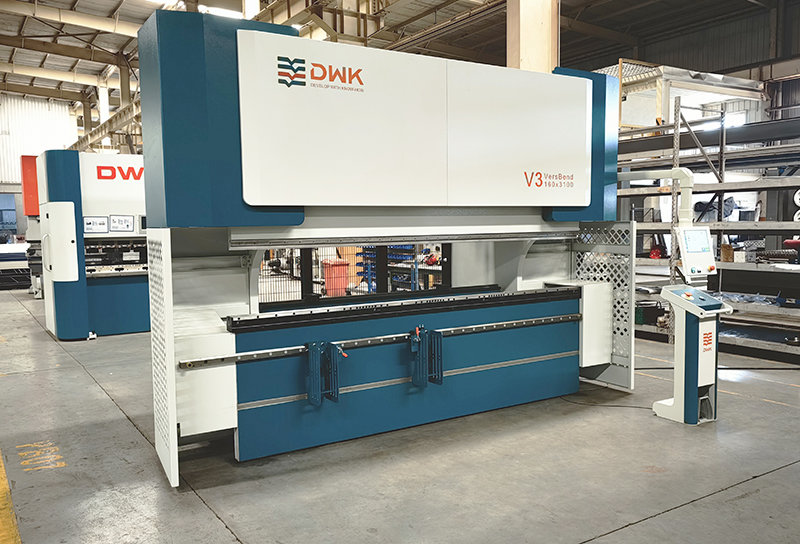

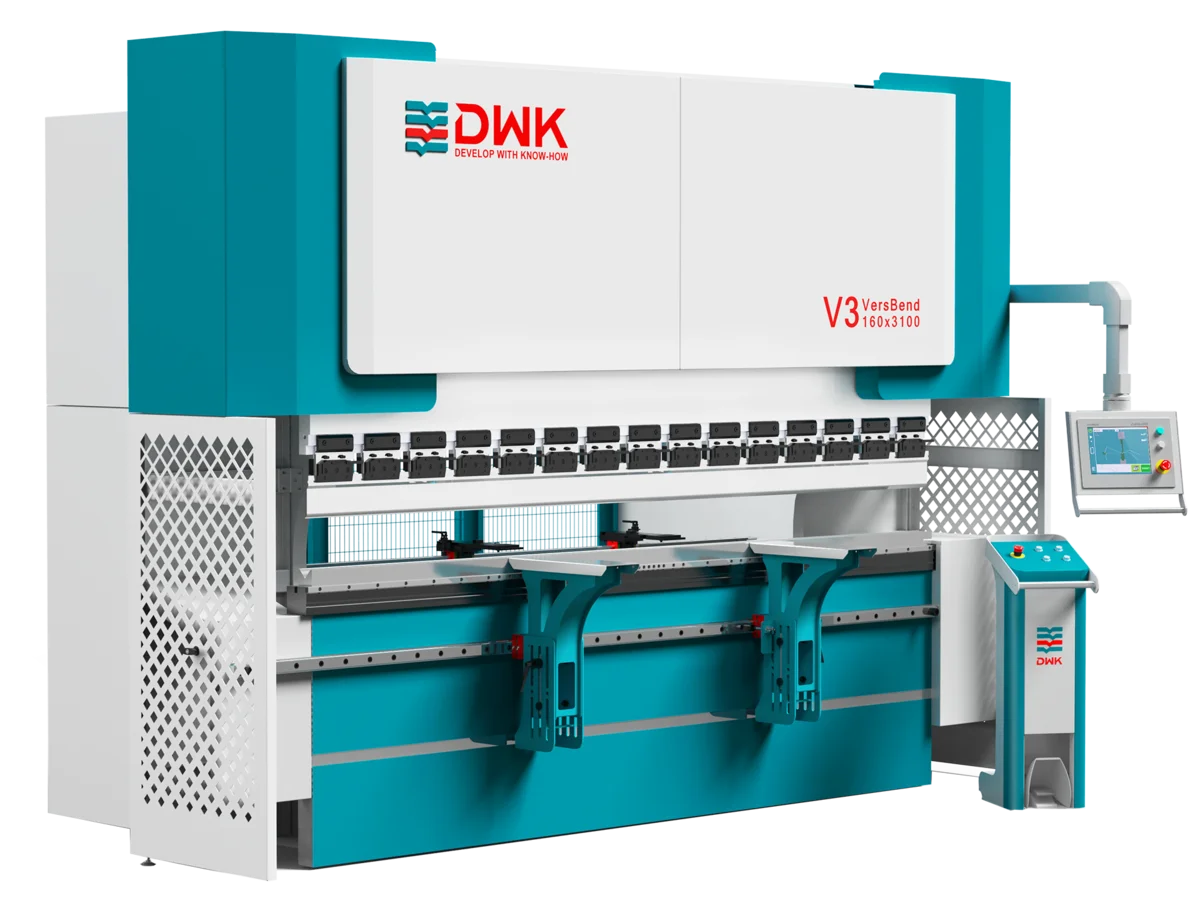

  • DWK-V Series C-Frame Press Brake

High Precision

With electro-hydraulic servo system, full closed-loop control synchronization, and hydraulic crowning system to guarantee.

Solid frame, enduring precision.

undergoes high-temperature annealing or vibration aging treatment

Powerful Functions

With the crowning system, one-touch release clamps, offline software, multi-functional pedal switch, rear photoelectric protection, etc.

User Friendly

Ergonomic and user-friendly design for less fatigue in operation.






  • Nominal Force (KN)
    500

    X Axis travel（mm）
    500
    Bending Length (mm)
    1250

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    800

    R Axis travel（mm）
    120
    Ram Stroke  (mm)
    160

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    410

    Z Axis travel（mm）
    500
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150

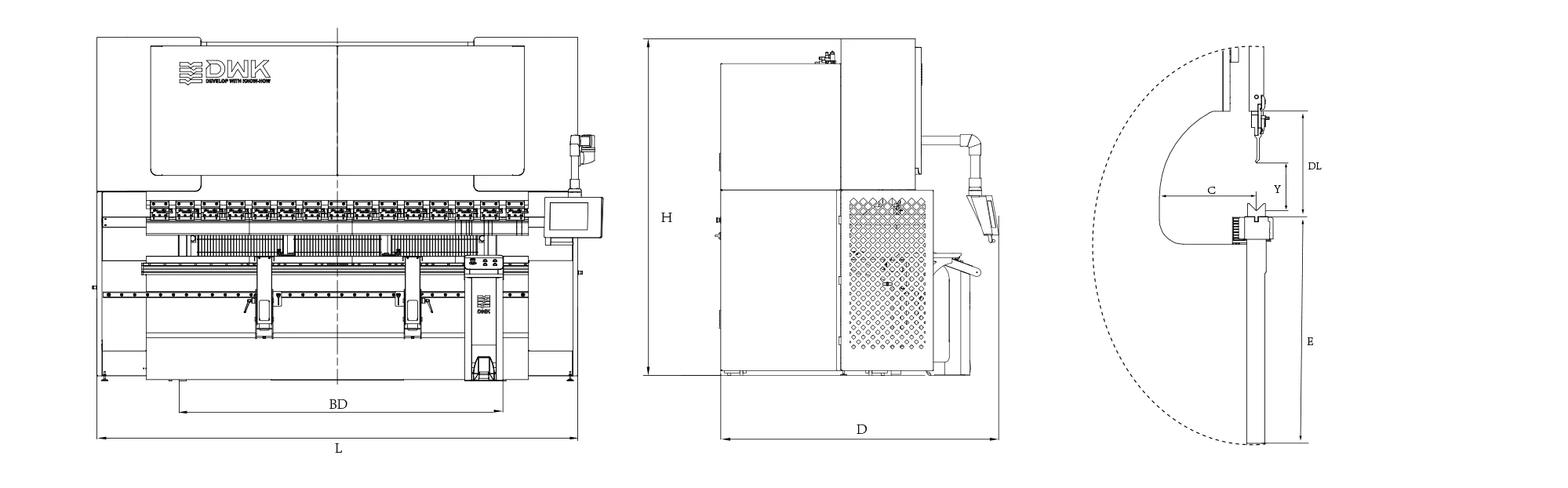

    		Length (mm)
    		2170
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1503/1680
    Ram Return Speed  (mm/s)
    		160
    		Height (mm)
    		2770
    Workpiece straightness（mm）
    		≤±0.3/1000





    		*The right to modify dimensions, design and equipment reserved











  • Nominal Force (KN)
    500

    X Axis travel（mm）
    500
    Bending Length (mm)
    1500

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    1050

    R Axis travel（mm）
    120
    Ram Stroke  (mm)
    160

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    410

    Z Axis travel（mm）
    750
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150
    		Length (mm)
    		2420
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1503/1865
    Ram Return Speed  (mm/s)
    		160
    		Height (mm)
    		2770
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    600

    X Axis travel（mm）
    500
    Bending Length (mm)
    2000

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    1350

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    160

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    410

    Z Axis travel（mm）
    800
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		120
    		Length (mm)
    		2920
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1603/1965
    Ram Return Speed  (mm/s)
    		150
    		Height (mm)
    		2770
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    800

    X Axis travel（mm）
    500
    Bending Length (mm)
    1500

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    1050

    R Axis travel（mm）
    120
    Ram Stroke  (mm)
    160

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    410

    Z Axis travel（mm）
    750
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150
    		Length (mm)
    		2420
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1503/1865
    Ram Return Speed  (mm/s)
    		160
    		Height (mm)
    		2770
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    1000

    X Axis travel（mm）
    500
    Bending Length (mm)
    2000

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    1350

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    200

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    440

    Z Axis travel（mm）
    800
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		120
    		Length (mm)
    		2920
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1603/1965
    Ram Return Speed  (mm/s)
    		150
    		Height (mm)
    		2870
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    1000

    X Axis travel（mm）
    500
    Bending Length (mm)
    2600

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    1950

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    200

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    440

    Z Axis travel（mm）
    1350
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		135
    		Length (mm)
    		3520
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1603/1965
    Ram Return Speed  (mm/s)
    		140
    		Height (mm)
    		2870
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    1000

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    2450

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    200

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    440

    Z Axis travel（mm）
    1850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150
    		Length (mm)
    		4020
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1603/1965
    Ram Return Speed  (mm/s)
    		140
    		Height (mm)
    		2870
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    1000

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    3420

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    200

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    440

    Z Axis travel（mm）
    2850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		180
    		Length (mm)
    		5020
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1603/1965
    Ram Return Speed  (mm/s)
    		140
    		Height (mm)
    		2870
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    1350

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    2450

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    200

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    440

    Z Axis travel（mm）
    1850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150
    		Length (mm)
    		4020
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1683/2045
    Ram Return Speed  (mm/s)
    		140
    		Height (mm)
    		2910
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    1600

    X Axis travel（mm）
    500
    Bending Length (mm)
    2600

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    1950

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    200

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    440

    Z Axis travel（mm）
    1350
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		135
    		Length (mm)
    		3520
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1760/1990
    Ram Return Speed  (mm/s)
    		130
    		Height (mm)
    		2970
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    1600

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    2450

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    200

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    440

    Z Axis travel（mm）
    1850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150
    		Length (mm)
    		4020
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1760/1990
    Ram Return Speed  (mm/s)
    		130
    		Height (mm)
    		2970
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    1600

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    3180

    R Axis travel（mm）
    250
    Ram Stroke  (mm)
    200

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    440

    Z Axis travel（mm）
    2850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		180
    		Length (mm)
    		5020
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1760/1990
    Ram Return Speed  (mm/s)
    		130
    		Height (mm)
    		2970
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    2000

    X Axis travel（mm）
    500
    Bending Length (mm)
    2600

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    1950

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    440

    Z Axis travel（mm）
    1350
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150
    		Length (mm)
    		3520
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1810/2140
    Ram Return Speed  (mm/s)
    		140
    		Height (mm)
    		3020
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    2250

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    2450

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    480

    Z Axis travel（mm）
    1850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150
    		Length (mm)
    		4020
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1860/2190
    Ram Return Speed  (mm/s)
    		120
    		Height (mm)
    		3070
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    2250

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    3420

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    480

    Z Axis travel（mm）
    2850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		180
    		Length (mm)
    		5020
    Ram Pressing  (mm/s)
    		10
    		Width(with or without front support) (mm)
    		1860/2190
    Ram Return Speed  (mm/s)
    		120
    		Height (mm)
    		3070
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    2500

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    2450

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    480

    Z Axis travel（mm）
    1850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		120
    		Length (mm)
    		4020
    Ram Pressing  (mm/s)
    		8
    		Width(with or without front support) (mm)
    		2960/2290
    Ram Return Speed  (mm/s)
    		110
    		Height (mm)
    		3070
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    2500

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    3420

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    480

    Z Axis travel（mm）
    2850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150
    		Length (mm)
    		5020
    Ram Pressing  (mm/s)
    		8
    		Width(with or without front support) (mm)
    		1960/2290
    Ram Return Speed  (mm/s)
    		110
    		Height (mm)
    		3070
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    3000

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    2450

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    480

    Z Axis travel（mm）
    1850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		110
    		Length (mm)
    		4020
    Ram Pressing  (mm/s)
    		8
    		Width(with or without front support) (mm)
    		2060/2460
    Ram Return Speed  (mm/s)
    		110
    		Height (mm)
    		3170
    Workpiece straightness（mm）
    		≤±0.3/1000













  • Nominal Force (KN)
    3000

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column  Distance (mm)
    3420

    R Axis travel（mm）
    180
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    480

    Z Axis travel（mm）
    2850
    Throat depth (mm)
    400

    Z Axis working speed（mm/s)
    600
    Ram Down Speed (mm/s)
    		150
    		Length (mm)
    		5020
    Ram Pressing  (mm/s)
    		8
    		Width(with or without front support) (mm)
    		2060/2460
    Ram Return Speed  (mm/s)
    		100
    		Height (mm)
    		3170
    Workpiece straightness（mm）
    		≤±0.3/1000








L - Machine length
D - Machine width
H - Machine height
BD - Frame column spacing
C - Throat depth
Y - Ram Stroke
DL - Opening Height
E - Workbench height

DOWNLOAD PRESS BRAKE CATALOG RIGHT NOW!

CALL: +86-191 0221 6005
DOWNLOAD Contact us

Basic Configuration

    • Accuracy and repeatability: The Y-axis control system provides high-precision bending operations, ensuring high dimensional accuracy of the processed workpieces and maintaining consistency across repeated bending tasks.

      Speed and Efficiency: Advanced Y-axis technology increases bending speeds, resulting in higher productivity. By optimizing motion control algorithms and using high-performance drive systems, fast and precise bending operations can be achieved.

      Automation and intelligence: Advanced Y-axis systems usually integrate automation and intelligence functions, which can realize automated bending processes through programming, reduce manual intervention, and improve production efficiency.

      Programmability and flexibility: Y-axis technology allows users to flexibly adjust the bending angle and path through programming to adapt to the needs of different workpieces and provide greater production flexibility.
    • One-button release quick clamping, clamp with quick release lever to speed up tool changes. Quick release clamp allows vertical installation and removal of punches. No need to move the tool (punch) sideways. If you need to process thin metal sheets you don’t need to change tools frequently. DWK fixtures have strict quality requirements and standards.
    • · The front support system is sturdy and durable, and each machine can carry 100 kg. It is an ideal device to reduce the physical burden on machine tool operators in daily use.

      · The replaceable and foldable front support frame can be upgraded to make plate processing more convenient.
    • There are lights on the front and back of the machine workbench. The number of groups is increased according to the length of the machine, which facilitates daily operation and maintenance and provides a bright and safe environment for sheet metal processing.
    • DELEM/Cybelec CNC systems feature:

      · 2D graphics touch screen programmable module;
      · 3D visualization, modeling and production;
      · Automatically generate bending steps;
      · Automatic calculation of pressure and angle during bending process;
      · Machine frame deflection compensation function;
      · Determine the function of plate thickness;
      · USB port for data transfer and backup;
      · Advanced Y-axis control algorithm accurately controls the Y-axis pressure to ensure bending accuracy;
      · Industry 4.0 software support.

    • The two-way mechanical deflection compensation mechanism adopts a unique wedge mechanism. Each set of wedges is designed to match the deflection of the upper and lower beams. When bending the workpiece, the CNC calculates the required compensation amount based on the load force and automatically sets the relative movement amount of the workpiece.

      The wedges effectively compensate for the deflection of the movable beam. The mechanical compensation mechanism is complete and reliable, with high precision and minimal error.

    • The main components use the French SCHNEIDER brand, and the servo motors are from the ESTUN brand, ensuring stable operation and strong anti-interference capability.

      The electrical cabinet has a well-organized and clear wiring layout, facilitating maintenance or troubleshooting, and it provides efficient heat dissipation.
    • Indigenously developed back gauge system, optionally equipped with multiple axes, offering a wide positioning range.

      Components utilize internationally renowned brands such as TBM, ensuring durability and fast positioning speeds.
    • The press brake adopts a mature hydraulic system solution, providing reliable performance, low failure rate, and excellent overall functionality.

      High-frequency servo motors and hydraulic pumps, combined with internationally acclaimed hydraulic valve groups, enable precise control of Y1 and Y2.

      Integrated with the control system, it forms a data feedback loop, ensuring fast and accurate control of the movement of the ram.
    • To prevent personnel and foreign objects from entering the active range of the back gauge.

      Ensuring the safe and high-precision operation of the precision back gauge system.

      Upgradeable to an electric roll-up door.
    • The machine is equipped with a box-type mold cabinet for easy storage of molds to prevent the precision of high-precision molds from decreasing due to surface contamination or deformation.

    Customized accessories

    列表图

    Electric rolling shutter door

    列表图

    Multi-V mold

    列表图

    Hydraulic clamping device

    列表图

    Double pedal

    Rich options

    列表图

    Angle Detection System

    Online real-time detection of bending angle，to provide immediate feedback to CNC system, which ensure the consistency of bending angle of each batch.
    列表图

    Laser Protection

    The DSP laser protection with 3 modes comprehensively protects the personal safety of the operators and maintains the high level of the productivity of the DWK press brake.
    列表图

    Sheet Follower

    The DWK press brake with sheet follower for bending long and thin sheets. It places on the front of the press brake at the height of the bending line.

    Learn more about how press brakes work

    Watch a video on press brake operation and other useful information.
    Our YouTube channel

    Client Testimonials

    • An excellent experience, highly recommend DWK's machines.
      Willy
      Peru
    • We are very satisfied with the machine's quality, and we will continue to collaborate with DWK in the future
      Sayago
      Mexico
    • DWK's machines meet my production and processing needs, and I believe DWK press brake is highly recommended.
      Reynolds
      Italy
    • DWK has provided us with a lot of support, making our cooperation very pleasant
      Rodney
      United States
    Biaozhi Machine Tool (Tianjin) Co., Ltd

    13F, Office Building, Jijing Plaza,Binhai New Area Eco-City, Tianjin,China.

    +86 186 0261 1305
    info@dwkcnc.com
    GET A QUOTE

    Choose Your Language

    Email：info@dwkcnc.com
    Tel：+86-186 0261 1305

    在线客服
